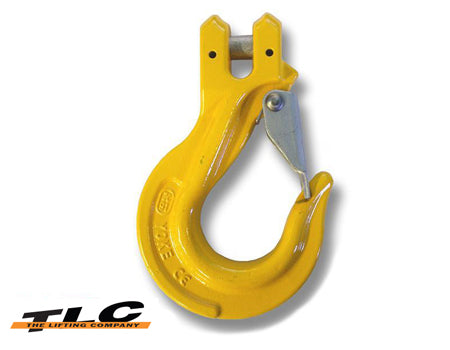

Safety Hook (Pinlok – Self-Locking)

No review yet. Write Review

$0.00

Description

Safety hook are popular for their quick and easy spring loaded safety latch. Most commonly used on chain and wire rope lifting slings, tow trucks and winches.

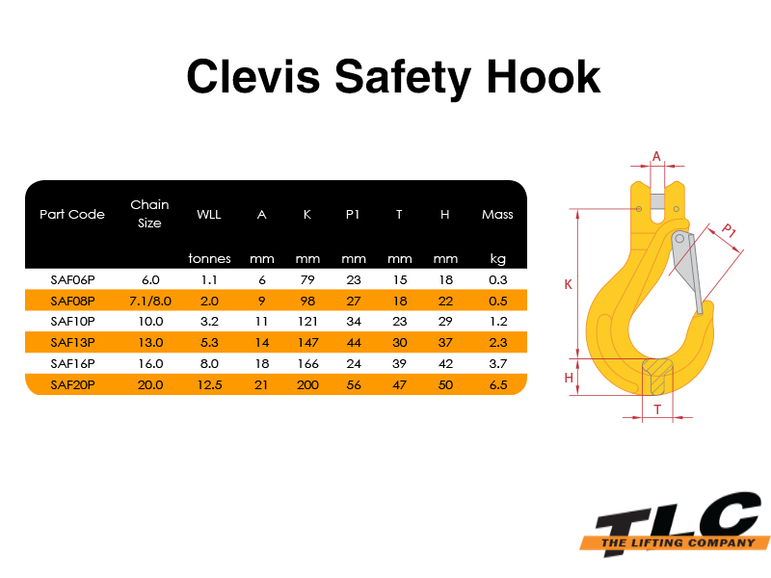

Clevis Safety Hook
Part Code	Chain Size	WLL	A	K	P1	T	H	Mass
		tonnes	mm	mm	mm	mm	mm	kg
SAF06P	6	1.1	6	79	23	15	18	0.3
SAF08P	7.1/8	2	9	98	27	18	22	0.5
SAF10P	10	3.2	11	121	34	23	29	1.2
SAF13P	13	5.3	14	147	44	30	37	2.3
SAF16P	16	8	18	166	24	39	42	3.7
SAF20P	20	12.5	21	200	56	47	50	6.5

Back to Alloy Fittings
