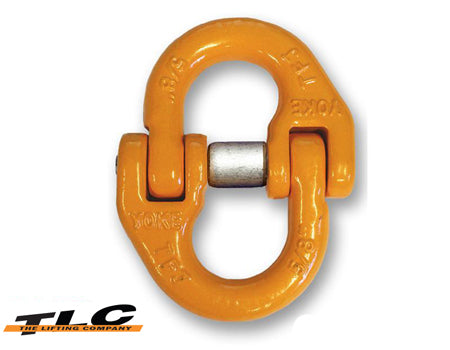

Hammerlock (coupler). Used for joining components on lifting slings.

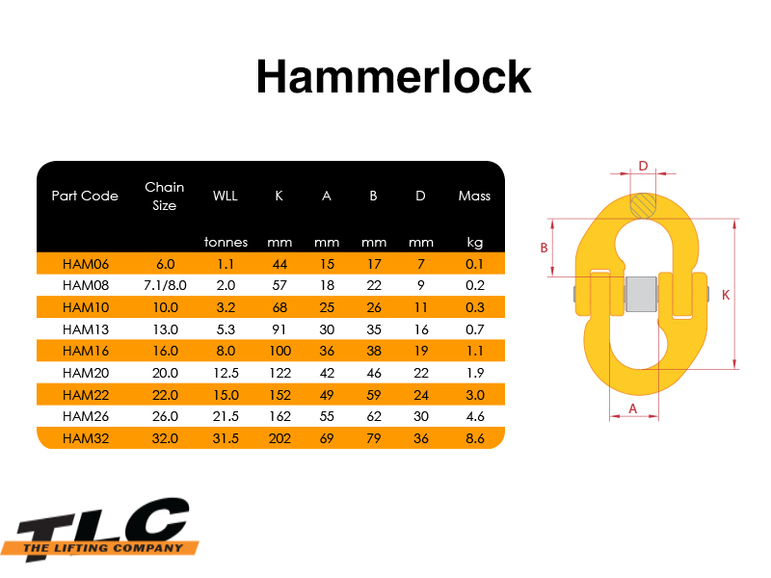

| Hammerlock |
|
|||||||
| Part Code | Chain Size | WLL | K | A | B | D | Mass | |
| tonnes | mm | mm | mm | mm | kg | |||
| HAM06 | 6 | 1.1 | 44 | 15 | 17 | 7 | 0.1 | |
| HAM08 | 7.1/8 | 2 | 57 | 18 | 22 | 9 | 0.2 | |
| HAM10 | 10 | 3.2 | 68 | 25 | 26 | 11 | 0.3 | |
| HAM13 | 13 | 5.3 | 91 | 30 | 35 | 16 | 0.7 | |
| HAM16 | 16 | 8 | 100 | 36 | 38 | 19 | 1.1 | |
| HAM20 | 20 | 12.5 | 122 | 42 | 46 | 22 | 1.9 | |
| HAM22 | 22 | 15 | 152 | 49 | 59 | 24 | 3 | |
| HAM26 | 26 | 21.2 | 162 | 55 | 62 | 30 | 4.6 | |
| HAM32 | 32 | 31.5 | 202 | 69 | 79 | 36 | 8.6 | |
