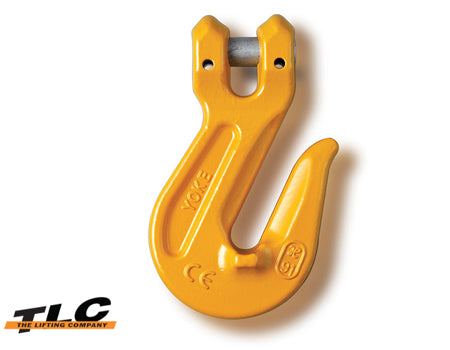

Grab Hook (Pinlock – Self-Locking). Grab hooks can are used for shortening the length of chain slings and creating reeved sling configurations.

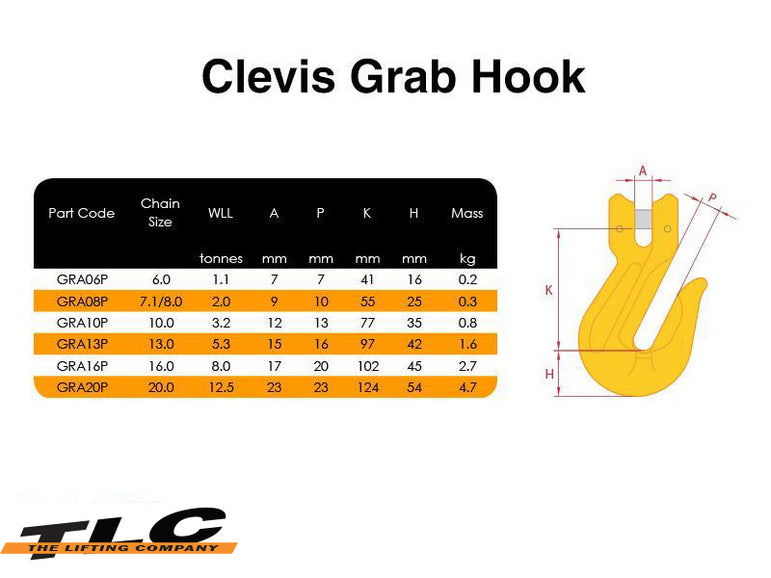

| Clevis Grab Hook |
|
|||||||
| Part Code | Chain Size | WLL | A | P | K | H | Mass | |
| tonnes | mm | mm | mm | mm | kg | |||
| GRA06P | 6 | 1.1 | 7 | 7 | 41 | 16 | 0.2 | |
| GRA08P | 7.1/8 | 2 | 9 | 10 | 55 | 25 | 0.3 | |
| GRA10P | 10 | 3.2 | 12 | 13 | 77 | 35 | 0.8 | |
| GRA13P | 13 | 5.3 | 15 | 16 | 97 | 42 | 1.6 | |
| GRA16P | 16 | 8 | 17 | 20 | 102 | 45 | 2.7 | |
| GRA20P | 20 | 12.5 | 23 | 23 | 124 | 54 | 4.7 | |
