AGV Cart Castors
Automated guided vehicle (AGV) cart castors
Move safely with self-aligning castors for AGV carts and trolleys.
Based on our M and O Series castors, AGV Cart Castors are fitted with a self-aligning device that automatically aligns the castor with the AGV. Designed for AGV delivery carts, these castors can carry up to 500 kg each and are available in stainless steel or mild steel finishes.

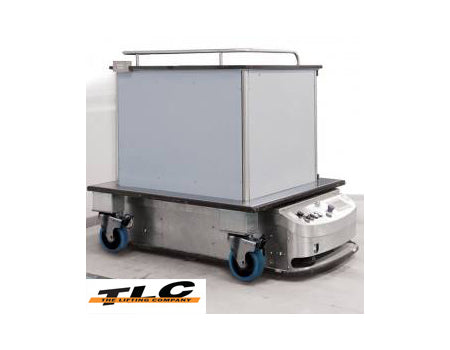

Fitted to your existing carts and trolleys, the AGV Cart Castor ensures that when an AGV picks up your cart, the castors stay in line with the AGV and do not swivel, thereby avoiding accidental contact with walls, pedestrians or the AGV itself.
If your organisation utilises AGVs only in pedestrian-free areas, and then switches to towing carts with powered tugs in pedestrian areas, our self-aligning direction-lock castors ensure that your cart can be towed safely, without it swerving from side to side.
Minimum order quantities
Adding the self-aligning device requires piercing the fork. Mild steel versions can be made to order with minimum order quantities (200 pieces), however, as the self-aligning device cannot be added to an already-plated mild steel fork without damaging the corrosion protection, mild steel forks are not stocked and need to be made to order. No minimum order quantities apply to stainless steel versions.
Specifications
| M Series | O Series | ||
|---|---|---|---|
| QTQ | HUS | OBC | |
| Load rating: | 200 kg | 350–500 kg | 350–400 kg |
| Wheels: | Grey energy absorbent elastomer | Polyurethane on nylon | Blue high resilience elastomer |
| Forks: | Self-aligning stainless steel or mild steel | ||
| Warranty: | Three years | ||
| Diameter x tread: | 150 mm x 34 mm | 125 mm x 40 mm 150 mm x 40 mm 200 mm x 48 mm |
125 mm x 50 mm 150 mm x 50 mm 200 mm x 50 mm |
| Hub x bore: | 40 mm x 8 mm | 60 mm x 12.7 mm | |
| Bearing: | Precision bearing | Roller bearing | Precision bearing |
| Thread guard: | Yes | Available for 150 mm wheel | No |
Self aligning swivel plate
| Order code: | HUS125/OSPSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 109 mm |
Fixed plate
| Order code: | HUS125/HSF |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | n/a mm |
Self aligning swivel and total brake
| Order code: | HUS125/OSPTBSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 162 mm |
Self aligning swivel and direction lock
| Order code: | HUS125/OSPDLSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 162 mm |
Self aligning swivel plate
| Order code: | OBC125/OSPSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 109 mm |
Fixed plate
| Order code: | OBC125/HSF |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | n/a mm |
Self aligning swivel and total brake
| Order code: | OBC125/OSPTBSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 162 mm |
Self aligning swivel and direction lock
| Order code: | OBC125/OSPDLSA |
| Max load: | 350 kg |
| Mount height: | 162 mm |
| Turning radius: | 162 mm |
